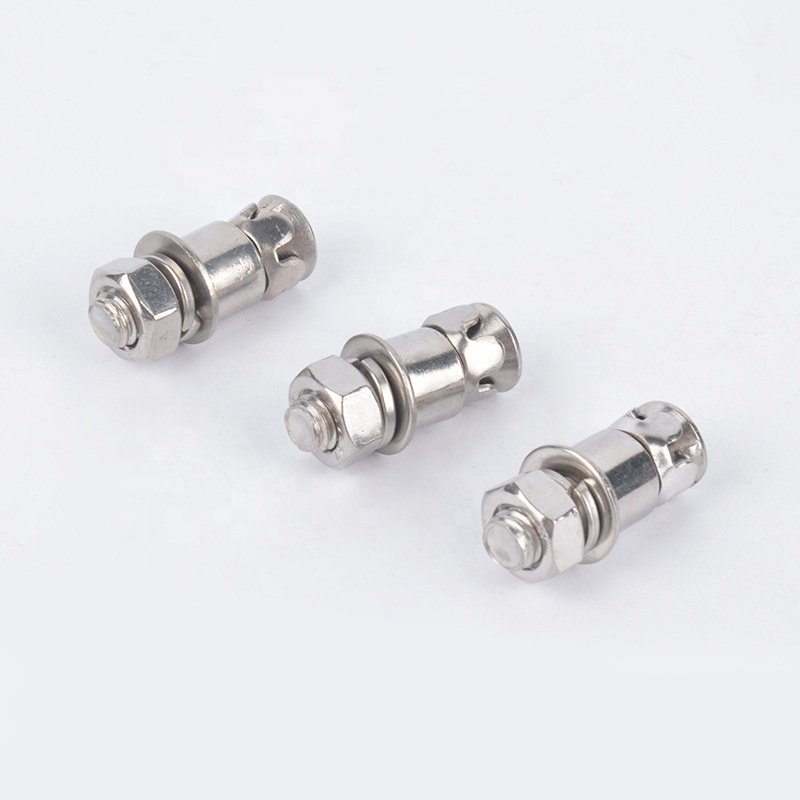

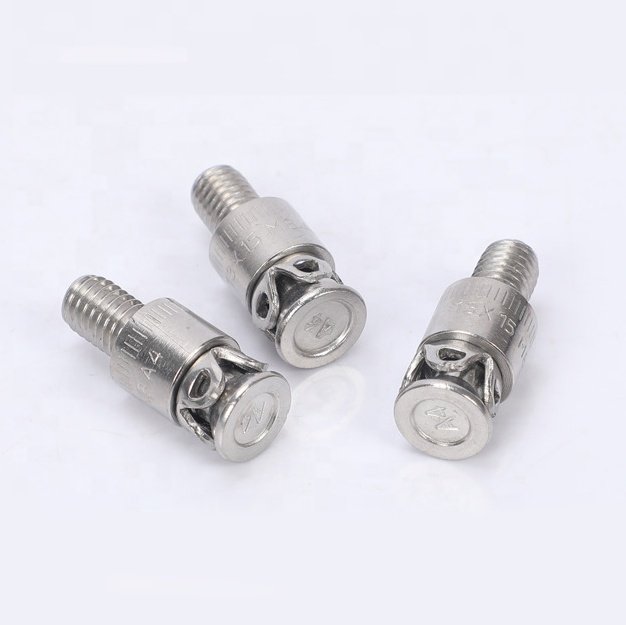

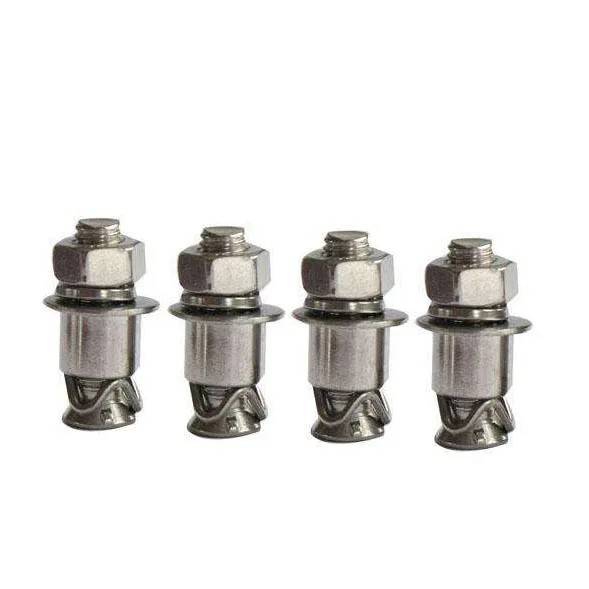

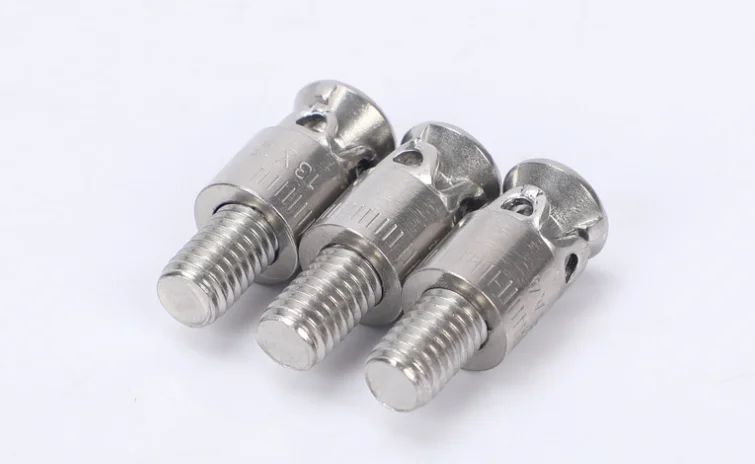

High quality M8 M6 carbon stainless steel zinc plating anchor back bolt with nut of stone curtain wall
Product
Product usage introduction Select back bolt specification
1. Put the bottom of the hole detector into the hole.2. Insert the plug rod into the bottom.3. If the plug rod can be pushed to the bottom completely, the hole is qualified.4. Pull out plug rod.5. Put the feeler between the plate and the bottom of the hole tester.6. If the plug rod cannot be pushed to the bottom, the hole is qualified.7. Check hole depth if necessary.
◆ Tensile and shear strength required for design.◆ Measure the thickness of the stone.◆ Choose anchor bolts according to the design of tensile strength at 1/2 of the stone thickness.◆ Measure the length of the back bolt, including the head of the back bolt and the thickness of the plate.Determine the required length of bolts.Design bearing capacity of back bolt
Product performance description
The backcut back plug dry hanging system can effectively fix all kinds of curtain wall panels. The hidden "internal wedge cutting" method is suitable for all kinds of internal and external decoration of buildings. The system consists of stainless steel back plug, aluminum alloy connectors and metal keel.It can provide the maximum bearing capacity and guarantee the plate not to be extruded by the back bolt to generate internal stress. It is suitable for all kinds of plates of 8mm-30mm.
| Product Name | Backanchor bolt |
| Material | Carbon steel SS304 |
| Function | Curtain wall accessories |
| Size | M6,M8 |
| Length | 32mm, 35mm |
| Package | Carton packaging |

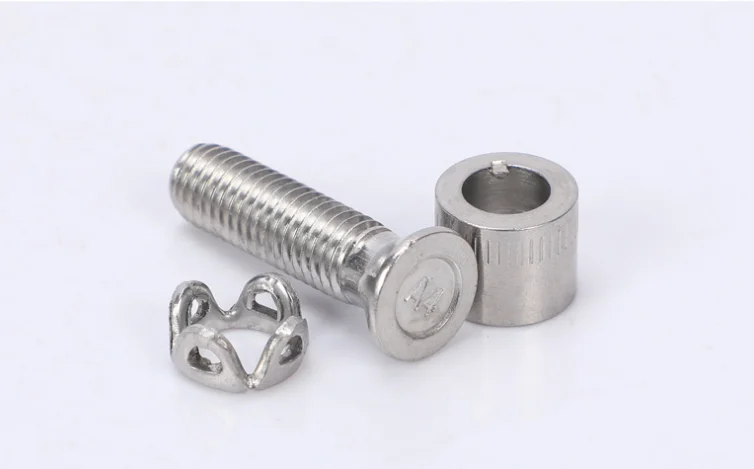

Installation Instructions The back bolt sleeve and screw length must be consistent with the required hole depth and the selected pendant. Only unified matching can be used for fast, simple and safe installation.* Place the back bolt sleeve, insert the screw into the back bolt sleeve and tighten to the bottom.* Place the pendant and fasten the screw fastener to the fastener to secure it.* Screw on and tighten the flange nut
Insert the back bolt sleeve into the hole and use the matching screw to tighten it to the right position.The backcut technology is composed of drilling tools and pendant system. The appearance of this technology broadens the vision for curtain wall designIn order to ensure the depth and size of the hole, it is necessary to use a measuring device to detect the hole after the hole is formed, so as to ensure the continuity and safety of the back plug hole.The backbolt anchorage system can effectively fix marble, granite, microcrystalline stone, ceramic board, crystal glass and all kinds of artificial fiber board, etc., suitable for board thickness of 8-40mm. Recommend Products
Lead time
| Quantity (pieces) | 1 – 500 | 501 – 1000 | > 1000 |
| Lead time (days) | 10 | 20 | To be negotiated |
